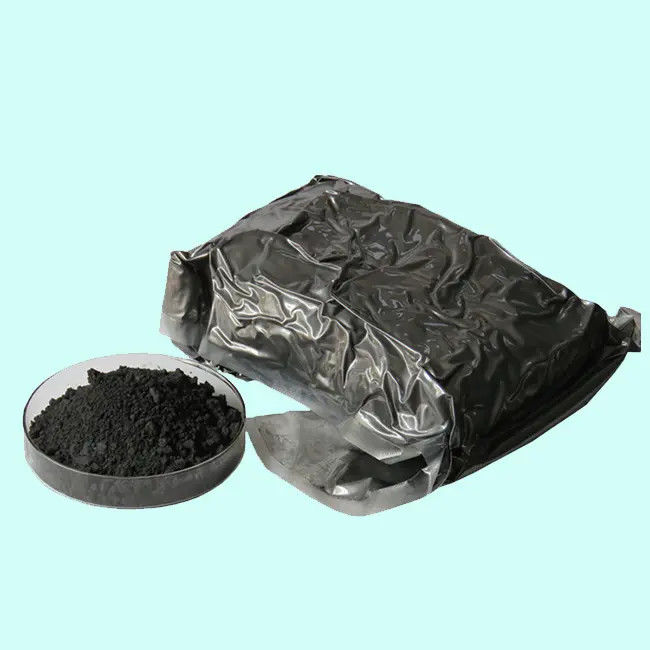

Product Details:
|
| Name: | Micron Graphite Powder | Purity: | 99.95% |
|---|---|---|---|
| Particle Size:: | 1um | Shape: | Flake |
| Type: | Powder Form | Application: | Lubricant, Thermal, Electric Conduction, Etc.. |
| High Light: | Ultrafine Graphite 99.95% Powder,1um Graphite Particle |
||
The characteristics of graphite powder:
(1) Processing faster: normally, graphite machining speed 2 ~ 5 times faster than copper.The electro discharge machining 2 ~ 3 times faster than copper
Material is not easy to deformation: more obvious advantages in the thin steel electrode machining;The softening point of copper in 1000 degrees, easy deformation because of the heat;The sublimation of graphite temperature is 3650 degrees;Thermal expansion coefficient is only 1/30 of copper.
(2) The lighter weight: the density of graphite is only 1/5 of copper, large electrode in EDM, can effectively reduce the burden of machine tools (EDM);More suitable for application in large mould.
(3) Discharge consume smaller;Because the spark oil also contains C atoms, in edm, high temperature lead to spark came out of the oil C atoms are broken down, turned on the surface of graphite electrode form a protective film, compensate the loss of the graphite electrode.
(4) No burrs,Copper electrode in the processing is completed, still need to manually trim to remove burrs, and no burr after graphite processing, save a lot of cost, at the same time are easier to implement automatic production.
(5) Graphite is easier to grinding and polishing;Due to only 1/5 of the copper graphite cutting resistance, easier to grinding and polishing by hand.
(6) Material cost is lower, the price is more stable;Due to rising prices in recent years, and now isotropic graphite copper price is lower, under the same volume, the universality of toyotanso graphite products price is 30% ~ 60% lower than the price of copper, and the price is more stable, short-term price fluctuations is very small.
This is the incomparable advantage, graphite gradually replace copper as the first choice for EDM electrode material.
| Grade | D10 (um) |
D50 (um) |
D90 (um) |
Carbon Content (%) |
Bulk Density (g/l) |
Moisture (%) |
| HSMG35 | 15±5 | 35±5 | 70±10 | 95-99 | 550-600 | <0.4 |
| HSMG25 | 7±3 | 25±5 | 60±10 | 95-99 | 350-450 | <0.4 |
| HSMG20 | 6±3 | 20±5 | 38±8 | 95-99 | 300-400 | <0.4 |
| HSMG10 | 4±1.5 | 10±2 | 25±6 | 95-99 | 200-300 | <0.4 |
| HSMG6BP | 3±1 | 6±1.5 | 22±5 | 95-99 | 100-170 | <0.4 |
| HSMG4 | 2±1 | 4±1 | 11±2 | 95-99 | 130-230 | <0.4 |
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shandong Province,China which has rich coal.All our clients, from home or
abroad, are warmly welcome to visit us.
Q: How can I get the sample?
A: We’d like to supply samples free of charge, but you need pay for the freight fees.
Q: How does your factory do regarding quality control?
A: Quality is priority. My company always attaches great importance to quality controlling from the very beginning to the very end.
Q: How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.
Q: How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
