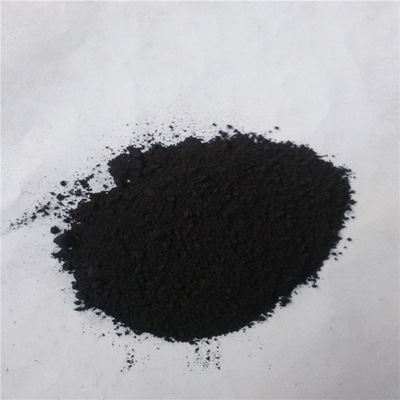

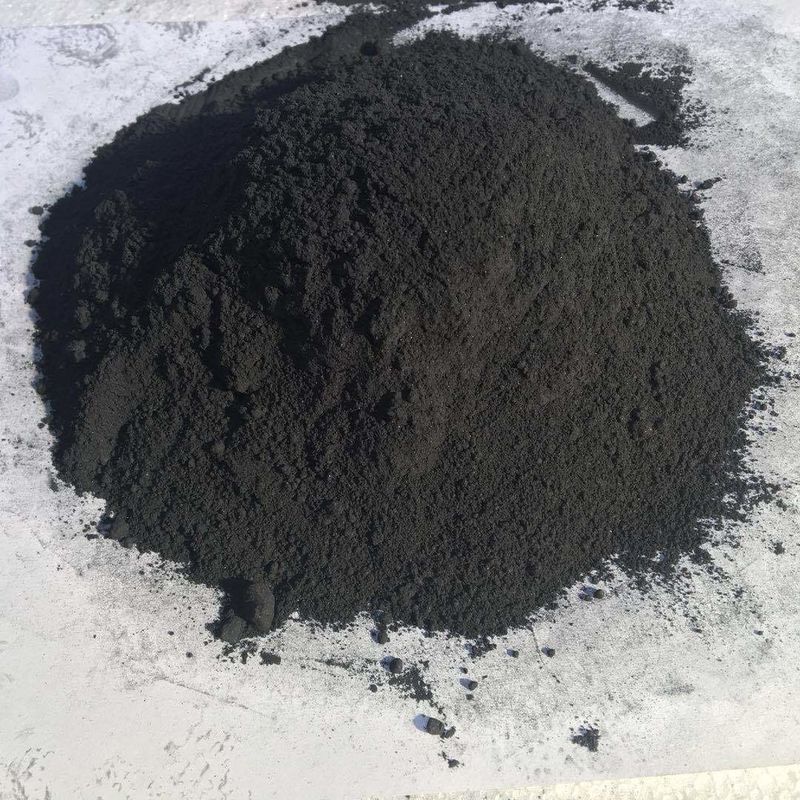

Natural Graphite F.C 85%Min -200 Mesh For Brake Pads
Place of Origin:
Qingdao,China
Brand Name:
Hensen
Certification:
Certificatie of Origin
Model Number:
-285
Minimum Order Quantity:
20 Tons
Price:
USD$500/TON-USD$3000/TON
Packaging Details:
1MT jumbo bag with a pallet
Delivery Time:
15 working days
Payment Terms:
T/T
Supply Ability:
1000 ton per month
Inquiry Now
Get A Quote
Specifications
Highlight Features
Natural Graphite F.C 85%Min
,Natural Graphite F.C
,Natural Graphite Brake Pads
F.C:
85%MIN
Moisture:
0.5%MAX
Mesh:
-200mesh
Sample:
Provide
Application:
Brake Pad
Packing:
25KG Small Bag, 1MT Jumbo Bag, Pallet
Product Description
Natural Graphite F.C 85%Min -200 Mesh For Brake Pads
Product Paramenters
| Products | Fixed Carbon (MIN) | Ash (MAX) | Volatile (MAX) | Particle Size |
| +3299 | 99% | 0.8% | 0.2% | +32 mesh: 75% MIN |
| +3295 | 95% | 4% | 1% | +32 mesh: 75% MIN |
| +599.9 | 99.9% | 0.1% | +50 mesh: 75% MIN | |
| +599.5 | 99.5% | 0.5% | +50 mesh: 75% MIN | |
| +599 | 99% | 0.8% | 0.2% | +50 mesh: 75% MIN |
| +899.9 | 99.9% | 0.1% | +80 mesh: 75% MIN | |
| +898 | 98% | 1.5% | 0.5% | +80 mesh: 75% MIN |
| +895 | 95% | 4% | 1% | +80 mesh: 75% MIN |
| +890 | 90% | 8.5% | 1.5% | +80 mesh: 75% MIN |
| +199 | 99% | 0.8% | 0.2% | +100 mesh: 75% MIN |
| +195 | 95% | 4% | 1% | +100 mesh: 75% MIN |
| +194 | 94% | 5% | 1% | +100 mesh: 75% MIN |
| -195 | 95% | 4% | 1% | -100 mesh: 80% MIN |
| -190 | 90% | 8.5% | 1.5% | -100 mesh: 80% MIN |
| -295 | 95% | 4% | 1% | -200 mesh: 80% MIN |
| -285 | 85% | 12.5% | 2.5% | -200 mesh: 80% MIN |
| -280 | 80% | 17.5% | 2.5% | -200 mesh: 80% MIN |
| -399 | 99% | 0.8% | 0.2% | -325mesh: 80% MIN |
| -395 | 95% | 4% | 1% | -325 mesh: 80% MIN |
| -385 | 85% | 12.5% | 2.5% | -325 mesh: 80% MIN |
Production
Flake graphite is a natural crystalline graphite, which is similar to fish phosphorus and belongs to hexagonal crystal system. It has layered structure. It has good properties of high temperature resistance, conductivity, heat conduction, lubrication, plasticity and acid-base resistance.
Flake graphite is a natural lubricant with a layered structure, rich in resources and cheap in price.
Natural graphite is formed by the transformation of carbon-rich organic matter under the long-term action of high temperature and high pressure geological environment, and is the crystallization of nature. The technological characteristics of natural graphite mainly depend on its crystalline form. Minerals with different crystalline forms have different industrial values and uses. There are many kinds of natural graphite. According to the different crystalline morphology, natural graphite is divided into dense crystalline graphite, flake graphite and cryptocrystalline graphite.
