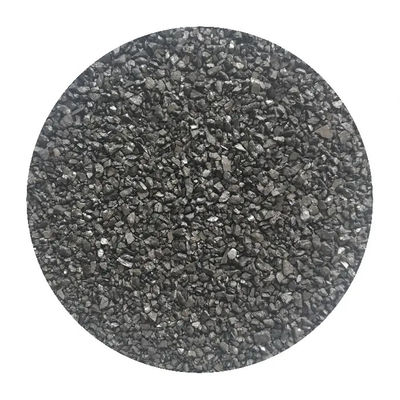

98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting

Certification
China Qingdao Hensen Graphite Co., Ltd. certification
China Qingdao Hensen Graphite Co., Ltd. certification
I'm Online Chat Now

98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting

98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting
98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting 98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting

Large Image :  98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting

Product Details:
Place of Origin: Qingdao of China
Brand Name: Hensen
Model Number: HS
Payment & Shipping Terms:
Minimum Order Quantity: 20 GP Container
Price: USD$500/TON-USD$3000/TON
Packaging Details: Small bag into big bag total 20 tons for 20' feet container
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 3000 ton per month

98%Min Carbon GPC Graphite Petroleum Coke Customized For Casting

Description
Product Name: Graphitized Petroleum Coke Raw Material: Anthracite Coal
Fixed Carbon: 98%min Moisture: 0.5%max
Feature: High Carbon And Low Sulfur Content Color: Black
Size: 1-5mm,1-3mm,1-4mm,or Customized Package Type:: 1.1MT Per Bag Or As Per Customer's Requirement 2.Customized Packaging According To Customer Requirements
Application: Casting/steel-making
Highlight:

GPC Graphite Petroleum Coke

,

98%min Carbon Graphite Petroleum Coke

,

GPC Synthetic Graphite Powder

High Quality Wholesale Price Carbon Graphite GPC Graphite Petroleum Coke



Production Description



Graphite Petroleum Coke is widely used as carburant in steel-making industry ans precision casting industry, reduction pregnant agent in the casting industry,reducing agent in metallurgical industry and as one kind of refractories etc.

Graphite Petroleum Coke could promote the nucleation of the graphite in liquid iron,increase the amount of spheroidal graphite, and improve the structure and the grade of grey and ductile iron.



Based on the microstructure observation, the features of Graphite Petroleum Coke are as following:

First,It can greatly increase the proportion of ferrite content of the nodular cast iron without pearlite stabilizer, Second, it can increase the percentage of V and VI shaped graphite when it is used;Third, comparing with the improvement of the shape of spheroidal graphite, the great increase of spheroidal graphite amount can decrease the usage of expensive nucleating agent for later micro-adjustment and save the cost remarkably.



Specification



Specs Item Typical Value
Carbon Content (%) 98.5min
Sulfur (%) 0.05 0.07 0.1 0.15 0.2
Vol Matter (%) 0.7max
Ash 0.8max
Moisture (%) 0.5max
Nitrogen (%) 0.05 0.1
Particle Size 1-5mm, 1-3mm, 1-4mm, and based on customer’s requests





1.What is graphite petroleum coke?

High purity graphitized petroleum coke is made from high quality peroleum coke under a temperature of 2,500-3,500C. As a high purity carbon material, it has characteristics of high fixed carbon content, low sulfur, low ash, low porosity etc. It can be used as carbon to produce high quality steel, cast iron and alloy.

2.How do you make graphite from petroleum coke?

Graphite is produced from calcined coke by grinding and sitting the coke to obtain a powder which is mixed with a suitable binder, formed into shapes, and heat treated. A binder for moderator graphite should have a carbon-to-hydrogen ratio (C/H) of about 1.5 to about 1.8.

3.What is the difference between graphite petroleum coke and calcined petroleum coke?

(1) Graphite Petroleum Coke is produced in graphitization furnace at about 3000 ℃, Calcined petroleum coke is produced in a forge furnace at a temperature of more than 1500 ℃.
(2) The fixed carbon content of graphitized carburizer is about 98%, and the highest is 99%.
