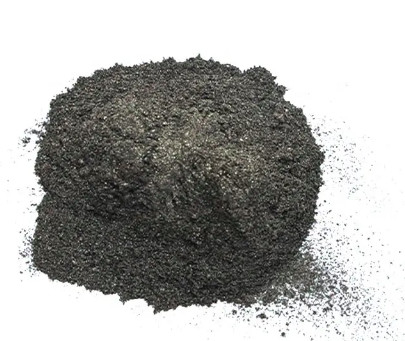

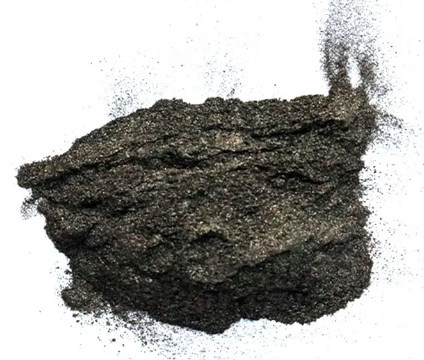

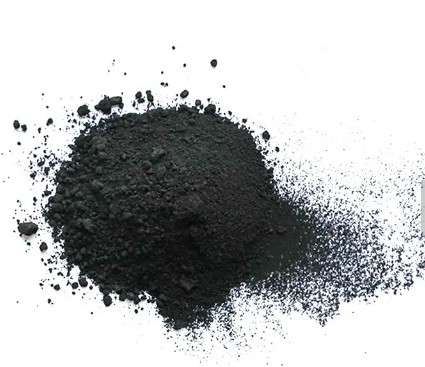

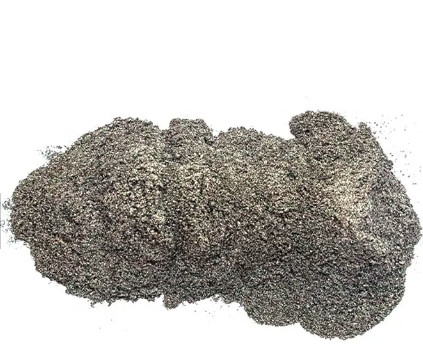

High Carbon Expandable Natural Flake Graphite Powder Expansion Rate 270

Products Description :

Fine graphite powder is a kind of energy saving and environmental protection material, using high-speed mill, Raymond mill, jet mill and other advanced grinding equipment. It is mainly used in the research of powder metallurgy, lubricating oil, grease, dry battery, conductive coating, lubricating coating, scientific research of the Commission of Science, Technology and Industry for National Defense and scientific research institutions, civil nuclear power, aerospace and aviation, strategic power interference weapons, smokescreen shielding weapons, etc.

Products Details and Parameters :

Expandable graphite is a high-quality natural phosphor flake graphite produced by our factory. It is a flexible graphite product obtained by special modification treatment.

Granularity: 50 mesh 80 mesh 100 mesh -100 mesh -200 mesh -325 mesh
Expansion ratio: 100-400ml / g or 50-300 Times

Products Features :

Due to its special structure, graphite has the following special properties:

1) High temperature resistance: The melting point of graphite is 3850 ± 50 ºC, and the boiling point is 4250 ºC. Even if it is burned by ultra-high temperature arc, the weight loss is small and the coefficient of thermal expansion is also small. The strength of graphite strengthens with increasing temperature. At 2000 ºC, the strength of graphite doubles.

2) Electrical and thermal conductivity: The electrical conductivity of graphite is one hundred times higher than that of ordinary non-metallic ores. Thermal conductivity exceeds metal materials such as steel, iron, and lead. The thermal conductivity decreases with increasing temperature. Even at extremely high temperatures, graphite becomes an insulator. Graphite can conduct electricity because each carbon atom in graphite only forms 3 covalent bonds with other carbon atoms, and each carbon atom still retains 1 free electron to transfer charge.

3) Lubricity: The lubricating performance of graphite depends on the size of graphite flakes. The larger the flakes, the smaller the friction coefficient and the better the lubricating performance.

4) Chemical stability: Graphite has good chemical stability at room temperature, and is resistant to acid, alkali and organic solvents.

5) Plasticity: Graphite has good toughness and can be rolled into a very thin sheet.

6) Thermal shock resistance: When used at room temperature, graphite can withstand the drastic change of temperature without damage. When the temperature changes suddenly, the volume of graphite does not change much, and no cracks will occur.

Loading &Delivery:

25kg/500kg/1000kg pp bags or as your request
