Product Details:
|
| Product Name: | High Purity Graphite Is High Expand Multiple Expandable Graphite Powder | Carbon Content: | Support Customization |
|---|---|---|---|
| Size: | As Your Requirement | Moisture: | <1% |
| PH: | 6-9 | Mesh: | +50,+80, -100,-200 |
| Expansion Ratio (cc/g): | 250:1; 180:1; 350:1; 200:1; 270:1; 30:1; 100:1; | Onset Temp (°C): | 160-180; 220; 250; |
| Highlight: | Multiple Expandable Graphite Powder,1% Moisture Expandable Graphite Powder,Expandable High Purity Graphite |
||
High Purity Graphite Is High Expand Multiple Expandable Graphite Powder

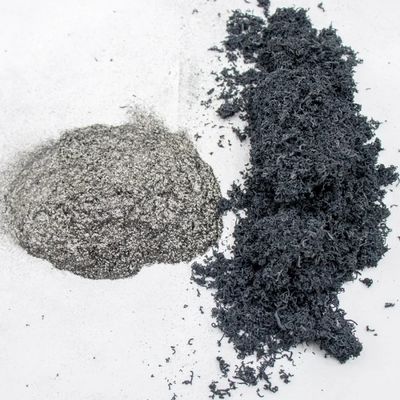

Expandable graphite can expand rapidly when heated at high temperature, and the expansion multiple is as high as tens to hundreds or even thousands of times. The apparent volume of expanded graphite is 250-300mL/g or larger, and the expanded graphite is worm-like.
The size is between a few tenths of a millimeter and a few millimeters, and it has a large number of unique network-like microporous structures inside, which are called expanded graphite or graphite worms. In addition to the excellent properties of natural graphite, such as cold and heat resistance, corrosion resistance, and self-lubrication, expanded graphite also has softness, compression resilience, adsorption, ecological environment coordination, biocompatibility, and radiation resistance that natural graphite does not have.
Expandable graphite and its expanded graphite can be used in iron and steel, metallurgy, petroleum, chemical machinery, medical, aerospace, atomic energy and other departments, and has a wide range of applications.
| Grade Name | Mesh | Expansion Ratio (cc/g) | Purity (%) |
Moisture (%) |
PH | Sulfur (ppm) |
Onset Temp (°C) |
Application |
| HS555 | +50 | 250:1 | 95-97 | <1 | 6-9 | * | 160-180 | PU foam, Bituman. |
| HS855 | +50 | 250:1 | 98-99 | <1 | 6-9 | * | 160-180 | PU foam, Bituman. |
| HS955 | +50 | 250:1 | 99-99.5 | <1 | 6-9 | * | 160-180 | PU foam, Bituman, for application require least instruments damage. |
| HS085 | +80 | 250:1 | 90-95 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
| HS585 | +80 | 250:1 | 95-97 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
| HS055 | +50 | 250:1 | 90-95 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
| HS988 | +80 | 180:1 | 99-99.5 | <1 | 6-9 | <1500 | * | Graphite foil, roll, gaskets. |
| HS980HP | +80 | 200:1 | 99.5-99.8 | <1 | 6-9 | <1500 | * | Graphite foil, roll, gaskets. |
| HS980UHP | +80 | 200:1 | >99.9 | <1 | 6-9 | <1500 | * | Battery. |
| HS557 | +50 | 270:1 | 95-97 | <1 | 6-9 | * | 160-180 | Steel oxygen protection. |
| HS611 | -100 | 100:1 | 96-98 | <1 | 6-9 | * | 160-180 | Fireproof textile. |
| HS223 | -200 | 30:1 | 92-95 | <1 | 6-9 | * | 160-180 | Thin coating. |
| HS5HE | +50 | 350:1 | 95-97 | <1 | 6-9 | * | 160-180 | Collar pillar. |
| HS9HE | +50 | 350:1 | 99-99.5 | <1 | 6-9 | * | 160-180 | Collar pillar, for application require least instruments damage. |
| HS558HT | +50 | 180:1 | 95-97 | <1 | 6-9 | * | 220 | Mixing, extruding or processing at higher temperatures. Used as fire-retardant additive in PE, PP, and HIPS. |
| HS558UHT | +50 | 180:1 | 95-97 | <1 | 6-9 | * | 250 | Processing temperatures are very high. Used as fire-retardant additive in PE, PP, and HIPS. |
