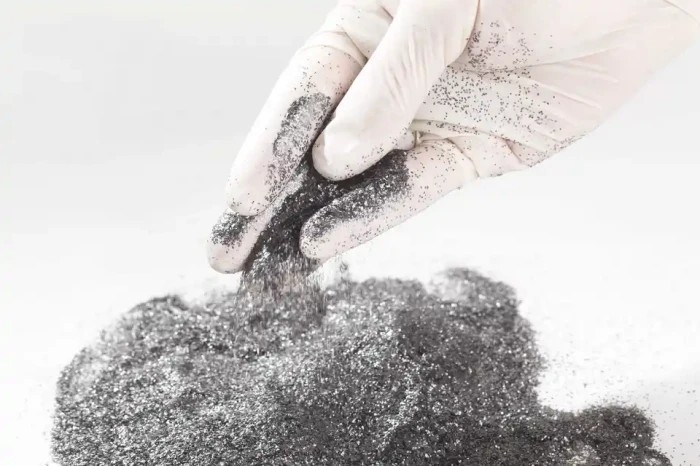

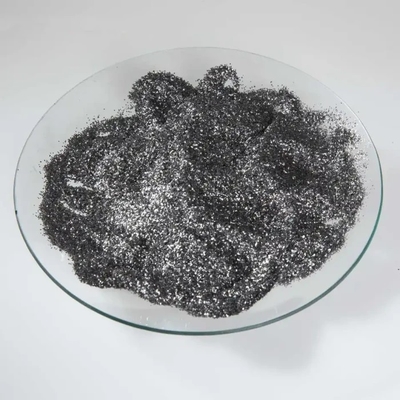

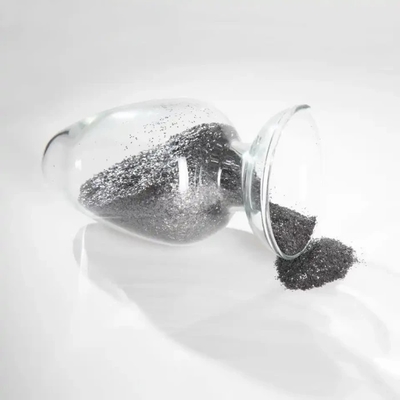

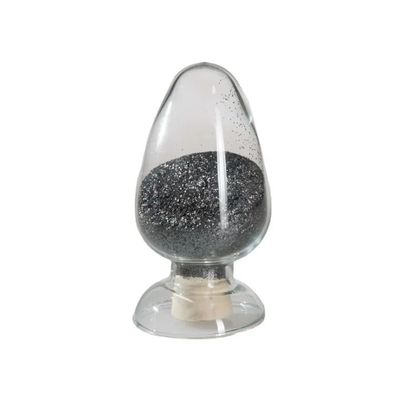

Expandable Brake Pads Thermal Nature Flake Graphite Powder 80 Mesh
Place of Origin:
Qingdao of China
Brand Name:
Hensen
Model Number:
HS558HT
Minimum Order Quantity:
20 GP Container
Packaging Details:
300 ton per month
Delivery Time:
30 working days
Payment Terms:
T/T
Inquiry Now
Get A Quote
Specifications
Highlight Features
Brake Pads Expandable Graphite Powder
,80 Mesh Nature Flake Graphite Powder
,Thermal Flake Graphite Powder
Features:
High Temperature Resistant
Carbon Content:
High-Carbon
Color:
Natural Color
Sample:
Provide
Shape:
Flake Graphite Powder
Type:
Natural
Application:
Graphite Foil, Sheet, Roll, Gaskets. Fire Retardant. Conductive Additive. Graphene.
MOQ:
20 GP Container
Product Description
Nature Flake Graphite Powder Expandable Brake Pads Thermal Graphite Powder 80 Mesh Flake Graphite
Expandable Graphite
- Expandable graphite is a synthesized intercalation compound of graphite that expands or exfoliates when heated. Once heated, it results an increase in the volume of up to 400 times, a lowering of bulk density, and approximately a 10-fold increase in surface area. Then it’s compressed into a highly cohesive flexible sheet.
Another principal application is as a flame retardant. As a result of the heat of a fire the graphite expands and creates an intumescent layer on the surface of the material. This retards the spread of fire and minimizes one of the most harmful effects of combustion: the creation of toxic gases and fumes.
Benefits of expandable graphite as flame retardant:
1.Forms an intumescence layer with Thermal Radiation Shielding, with superior Heat Diffusion.
2.Stops or slows the spread of fire and toxic gases.
3.Easy to apply, cost Effective, satisfied performance with low adding levels.
4.Non-toxic, non-halogenated fire-stop additive.
5.Neutral surface pH makes compatible with any catalyst system. - Usage:
- Graphite Foil, Sheet, Roll, Gaskets.
- Fire Retardant.
- Conductive Additive. Graphene.
-
- Special grades with different specs are also available on request. Please contact us for details.Grade Name Mesh Expansion Ratio (cc/g) Purity
(%)Moisture
(%)PH Sulfur
(ppm)Onset Temp
(°C)Application HS555 +50 250:1 95-97 <1 6-9 * 160-180 PU foam, Bituman. HS855 +50 250:1 98-99 <1 6-9 * 160-180 PU foam, Bituman. HS955 +50 250:1 99-99.5 <1 6-9 * 160-180 PU foam, Bituman, for application require least instruments damage. HS085 +80 250:1 90-95 <1 6-9 * 160-180 PU foam, EPS foam, XPS foam, sealing strip. HS585 +80 250:1 95-97 <1 6-9 * 160-180 PU foam, EPS foam, XPS foam, sealing strip. HS055 +50 250:1 90-95 <1 6-9 * 160-180 PU foam, EPS foam, XPS foam, sealing strip. HS988 +80 180:1 99-99.5 <1 6-9 <1500 * Graphite foil, roll, gaskets. HS980HP +80 200:1 99.5-99.8 <1 6-9 <1500 * Graphite foil, roll, gaskets. HS980UHP +80 200:1 >99.9 <1 6-9 <1500 * Battery. HS557 +50 270:1 95-97 <1 6-9 * 160-180 Steel oxygen protection. HS611 -100 100:1 96-98 <1 6-9 * 160-180 Fireproof textile. HS223 -200 30:1 92-95 <1 6-9 * 160-180 Thin coating. HS5HE +50 350:1 95-97 <1 6-9 * 160-180 Collar pillar. HS9HE +50 350:1 99-99.5 <1 6-9 * 160-180 Collar pillar, for application require least instruments damage. HS558HT +50 180:1 95-97 <1 6-9 * 220 Mixing, extruding or processing
at higher temperatures. Used as fire-retardant additive in PE,
PP, and HIPS.HS558UHT +50 180:1 95-97 <1 6-9 * 250 Processing temperatures are very high. Used as fire-retardant additive in PE,
PP, and HIPS. - Nature Flake Graphite Powder Expandable Brake Pads Thermal Graphite Powder 80 Mesh Flake Graphite
