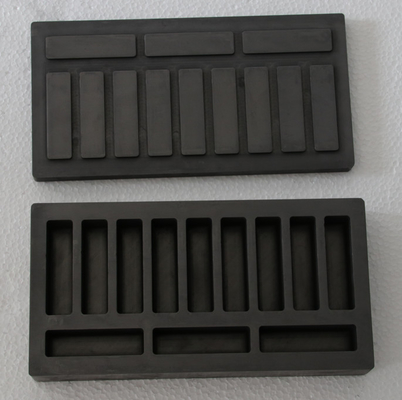

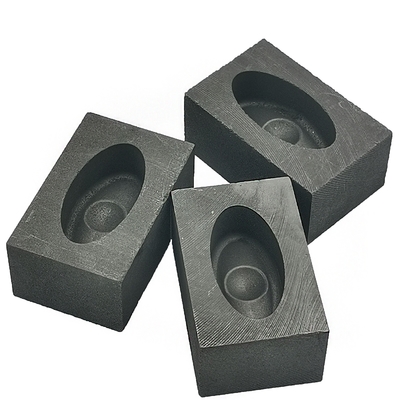

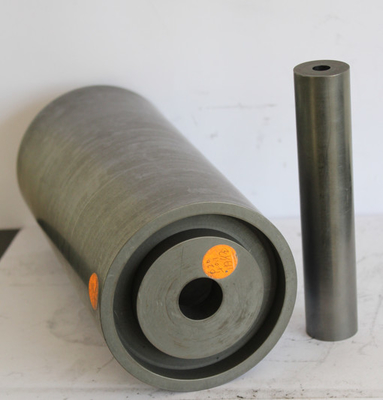

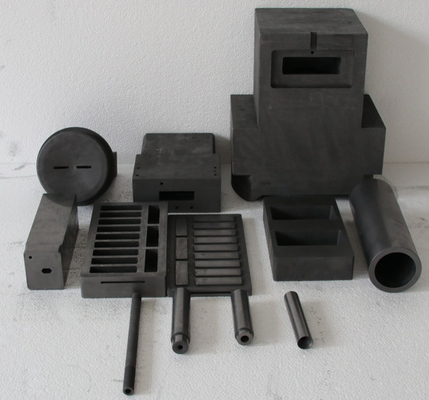

High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting

High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting
High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting

Large Image :  High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting

Product Details:
Place of Origin: Qingdao
Brand Name: ME
Model Number: as ordered
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: master carton as the ordered quantity
Delivery Time: 15 working days
Payment Terms: T/T, L/C

High Density Custom Graphite Mould For Gold 0.1% Ash Bending Strength Melting

Description
Bulk Density: 1.9 Hardness: 50
Resistivity: 10 Bending Strength: 42
Compressive Strength: 86 Ash: 0.1%
Highlight:

High density Custom Graphite Mould

,

Custom Graphite Mould 0.1% Ash

,

0.1% Ash graphite ingot mold

Technical data :
Max Grain Size

Bulk Density
g/cc
Specific Resistivity μΩ·m
Flexural Strength
Mpa
Compressive Strength
Mpa
Shore Hardness
C.T.E(100-600℃)
×10-6/℃
45µm
≥1.78
≤12.0
≥30.0
≥60.0
≥40.0
≤3.2
45µm
≥1.83
≤10.0
≥38.0
≥80.0
≥40.0
≤3.5
22µm
≥1.80
≤15.0
≥37.0
≥78.0
≥50.0
≤4.0
22µm
≥1.83
≤13.0
≥40.0
≥80.0
≥50.0
≤3.9



Graphite mould performance:

1.In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with
temperature rise
2. Good lubrication and abrasion resistance.
3. Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.
