Product Details:
|
| Carbon Content: | 90%min | Ash: | 10%max |
|---|---|---|---|
| Mio: | 1%max | PH: | 3-9 |
| Size: | 80%mesh Min | Expansion Ratio: | 200ml/g Min |
| Advantage: | Superior Heat Diffusion | Benefit: | Easy To Apply, Cost Effective, Satisfied Performance With Low Adding Levels |
| High Light: | XPS EPS Expandable Artificially Produced Graphite,Artificially Produced Graphite 90% Carbon,PU XPS EPS Carbon Graphite Powder |
||
Product Description

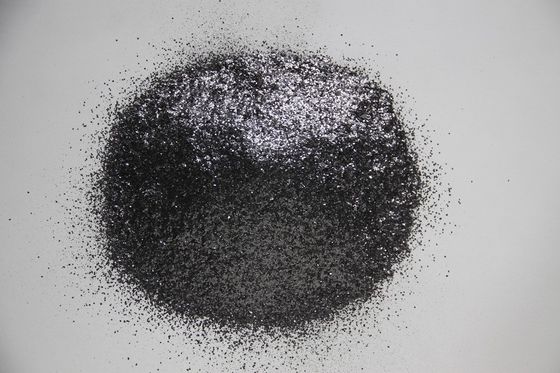

Expanded graphite is a soft porous material which is produced by natural squama graphite by means of oxidation, inserting, watering, dryness and expansion.As a result of the heat of a fire the graphite expands and creates an intumescent layer on the surface of the material,with superior Heat Diffusion.We use this property of expanded graphite to produce EPS.
Plastics and polymers are inherently low in thermal and electrical conductivity.
| Grade Name | Mesh | Expansion Ratio (cc/g) | Purity (%) |
Moisture (%) |
PH | Sulfur (ppm) |
Onset Temp (°C) |
Application |
| HS555 | +50 | 250:1 | 95-97 | <1 | 6-9 | * | 160-180 | PU foam, Bituman. |
| HS855 | +50 | 250:1 | 98-99 | <1 | 6-9 | * | 160-180 | PU foam, Bituman. |
| HS955 | +50 | 250:1 | 99-99.5 | <1 | 6-9 | * | 160-180 | PU foam, Bituman, for application require least instruments damage. |
| HS085 | +80 | 250:1 | 90-95 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
| HS585 | +80 | 250:1 | 95-97 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
| HS055 | +50 | 250:1 | 90-95 | <1 | 6-9 | * | 160-180 | PU foam, EPS foam, XPS foam, sealing strip. |
